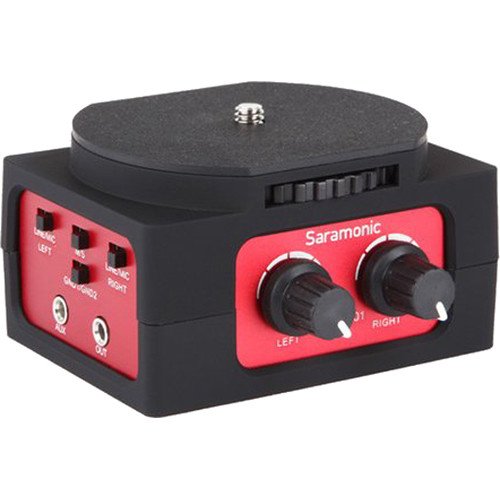

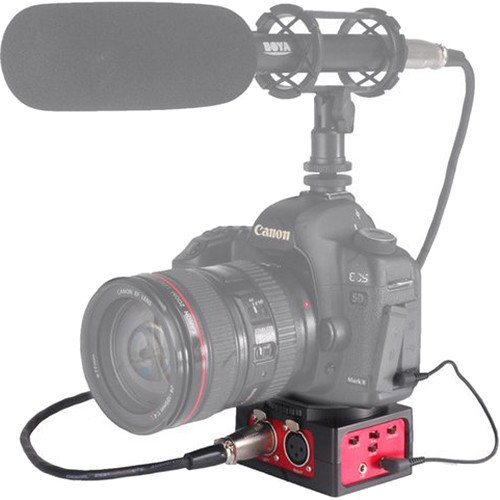

Upgrade your camera’s audio capabilities with the Saramonic SR-AX101. This 2-channel audio adapter is the bridge between professional XLR microphones and your DSLR or camcorder. It allows you to connect and control two balanced XLR inputs. You can also connect a 3.5mm mic via the auxiliary input. This is ideal for capturing high-quality sound from shotguns mics, lavaliers, or wireless systems.
This adapter is completely passive, meaning it requires no batteries or power source. It features dual trim control knobs. This lets you adjust the signal level for each channel independently. Switches for LINE/MIC levels and a Mono/Stereo output mode provide total control over your sound. The Saramonic SR-AX101 is a simple, robust, and noise-free solution for professional audio.
Technical Specifications:
- Brand: Saramonic
- Model: SR-AX101
- Type: 2-Channel Passive Audio Adapter

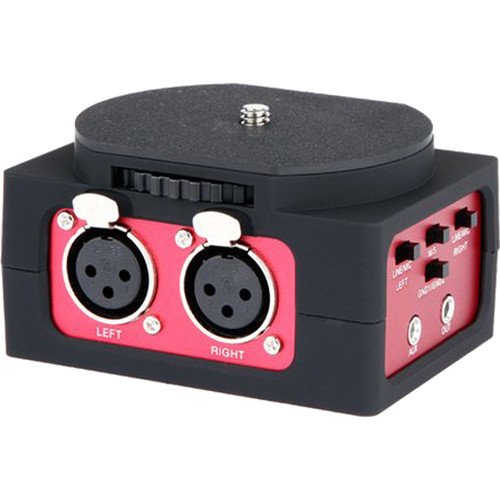

- Inputs: 2x Balanced XLR, 1x 1/8″ (3.5mm) Aux Mini-Jack
- Output: 1x Stereo 1/8″ (3.5mm) Mini-Jack
- Input Level (MIC): -35 dBu
- Input Level (LINE): -10 to +4 dBu
- Output Level: General Mic Level
- Frequency Response: 10 Hz to 100 kHz (+/- 1.5 dB)
- Controls: Dual trim knobs, LINE/MIC switches, Mono/Stereo switch, GND1/GND2 ground switch
- Power: Passive (no batteries required)
- Construction: Plastic Chassis
- Mounting: 1/4″-20 tripod socket on base
- Dimensions (L x W x H): 87 x 80 x 52 mm
- Weight: 191 g (6.7 oz)
